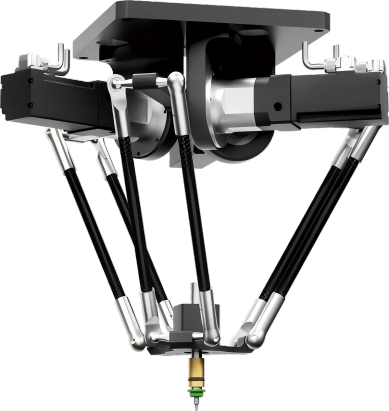

Parallelle robot
The parallel robot utilizes an innovative parallel-link design with integrated end-of-arm rotation, achieving high-speed and high-precision motion within a three-dimensional workspace. It boasts exceptional repeatability, a maximum speed of 120 cycli per minuut, and superior stiffness and dynamic performance. With support for vision-guided dynamic tracking and easy integration, it is efficient for sorting, verpakking, and handling in industries such as food, farmaceutische producten, and electronics.
Verhoogde productie
Volledig verwerkingssysteem
Uitstekende kwaliteit
Parallelle robot
Meer informatie
Productdetails
It delivers high positioning accuracy, operational stability, and exceptional flexibility.
Its robust construction and unique performance-oriented design extend service life and enhance operational safety.
The high-rigidity structure ensures precise end-effector rotation with an accuracy of up to ±0.05°.
Suitable for side-mounted installation, the robot provides excellent tracking performance.
It integrates high-quality, cost-effective vision-guided dynamic tracking for ultra-high-speed pick-and-place operations, achieving cycles of up to 120 times per minute.
Featuring a self-developed control system and a compact footprint, the robot offers strong load capacity, high stiffness, an excellent payload-to-weight ratio, and superior dynamic performance.
Parametertabel
| Model | OK-600DJ-L3 | OK-800DJ-L3 | OK-1000D-L3 |
| Power Rating | 4-Axis | 4-Axis | 4-Axis |
| Load(kg) | 3kg | 3kg | 3kg |
| Working Range |  |
 |
 |
| Repeat Positioning Accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
| Standard Cycle Time | 0.4 sec (25/305/25 mm) | 0.4 sec (25/305/25 mm) | 0.4 sec (25/305/25 mm) |
| Angular Positioning Accuracy | 0.05° | 0.05° | 0.05° |
| Power | 220V | 220V | 220V |
| Power Rating | 2.5kw | 2.5kw | 2.5kw |
| Noise Level | ＜75db | ＜75db | ＜75db |
| Protection Level | IP54 | IP54 | IP54 |
| Motor Method | Servo drivesAC Servo Drive | Servo drivesAC Servo Drive | Servo drivesAC Servo Drive |
| Demonstrator | 7inch7-inch Teach Pendant | 7inch7-inch Teach Pendant | 7inch7-inch Teach Pendant |
| Vision Positioning Module | 1.3MP(Camera, Lens, Light Source) | 1.3MP(Camera, Lens, Light Source) | 1.3MP(Camera, Lens, Light Source) |
| Operating Instructions | PTP、LINE、PICK、PLACE | PTP、LINE、PICK、PLACE | PTP、LINE、PICK、PLACE |
| Installation Method | Inverted Mount | Inverted Mount | Inverted Mount |
| Robot Wright | 40kg | 40kg | 40kg |
