In the process of manufacturing industry transformation and upgrading, the production of automated machines has brought a new wave of revolution. While traditional factories are still worried about rising labor costs, efficiency bottlenecks and safety risks, OK Collabotive Palletizing Robot has become the preferred solution for many enterprises with the core advantages of “high precision, high speed and high flexibility”.
- What is a palletizing robot and how can it bring about a change in manufacturing.
Palletizing robots are industrial robots serving as critical nodes in production logistics. Their core function is to replace human labor in material handling tasks such as grasping, stacking, and palletizing (stacking) of goods (e.g., cartons, drums, bags). Featuring high precision, speed, and flexibility, these robots achieve automated operations through a “perception-decision-execution” system. This enhances operational efficiency, reduces material damage rates, and lowers labor costs. They are widely used in industries including food and beverage, machinery manufacturing, electronics, and logistics warehousing.

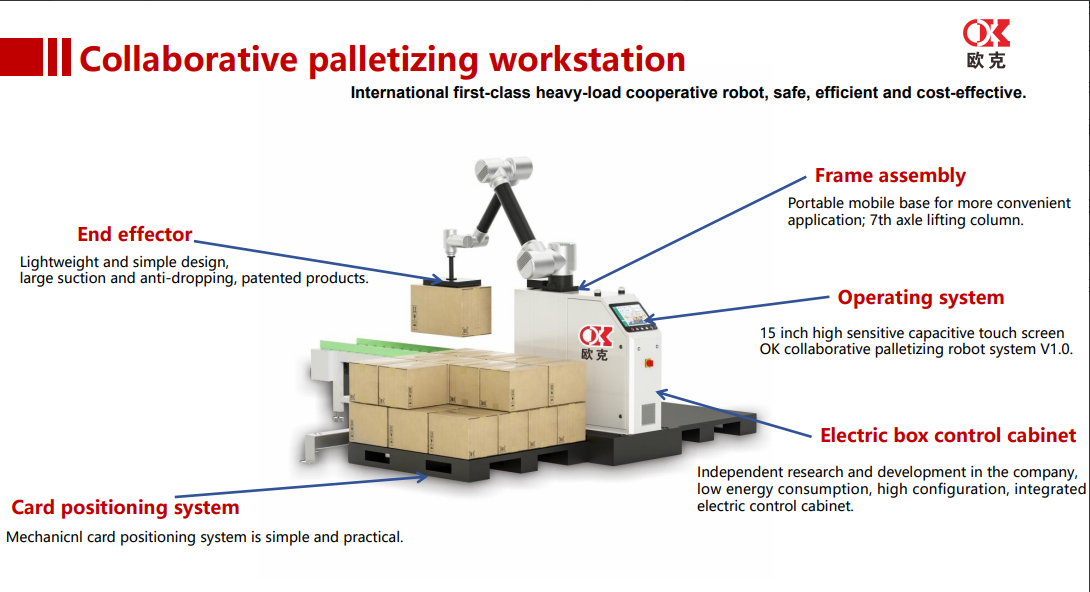

Robot Components
Customized palletizing robot solutions
With its strong adaptability, palletizing robots have become a customized solution in various industries. For the manufacturing industry, it can bring multi-dimensional core value.

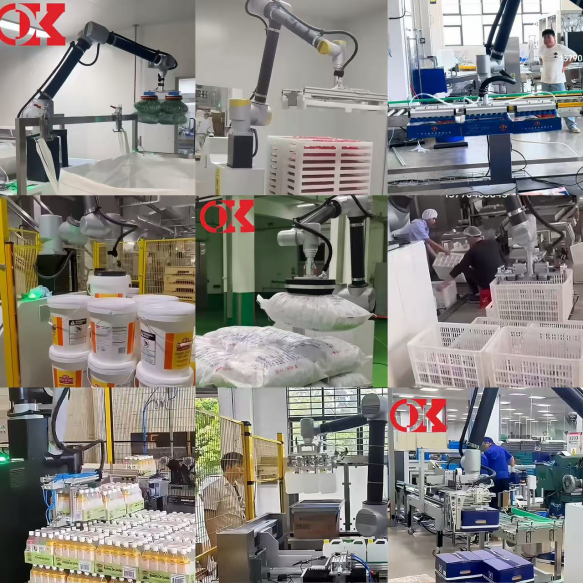

What industries can palletizing robots be used in
Palletizing robots can be used at the end of different production lines
In the food and beverage industry, it can meet the high beat palletizing requirements of bottled water and beer, and has aseptic protection design for baked goods;
In the field of chemical building materials, it can realize the anti-leakage grabbing of bagged cement and fertilizer, as well as the stacking of plates;
The electronic and electrical industry is equipped with anti-static gripping devices for PCB board palletizing, and can also provide buffer protection palletizing solutions for home appliance accessories;
In the logistics and storage link, it supports the mixed code stacking of e-commerce packages, and has low-temperature resistant models to adapt to the cold chain environment.
What problems can palletizing robots solve for manufacturing
- Low efficiency: manual palletizing is limited by physical strength and attention, resulting in high efficiency fluctuations and difficulty in matching the rhythm of high-speed production lines
- Safety hazard: manual handling of heavy objects (such as bagged cement, heavy parts) is prone to muscle injury, crushing injury and other accidents, and enterprises need to bear high compensation for work-related injuries and production interruption losses.
- Insufficient accuracy: manual palletizing is prone to problems such as tilted stacking and large gaps between layers, resulting in waste of storage space and high damage rate of materials (such as electronic components and fragile items).
- The shortcomings of flexibility: it takes a long time for manual to adapt to new materials and new stacking types, the switching cost of production line is high, and it is difficult to meet the production trend of multi-variety and small-batch production.
- Labor costs are rising

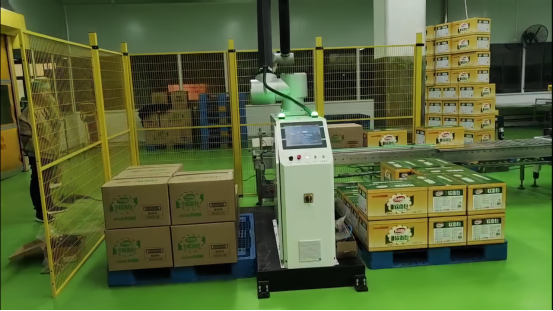

Palletizing robot solution
Palletizing robots can operate continuously for 24 hours with stable production rhythms, boosting line efficiency by 50%-150%. A single robot can replace 3-5 skilled workers. With an average annual labor cost of 80,000 yuan, each robot saves 240,000-400,000 yuan annually, and the ROI period is generally less than 8 months.
The robot carries heavy loads through mechanical structures, and with protective devices such as lidar, security fence and light curtain, the accident rate of handling can be reduced by more than 80%. The collision detection technology also enables human-machine collaboration without isolation, further improving safety.
The palletizing robot achieves ±0.04mm positioning accuracy with its 3D vision system, enabling precise material handling and stacking. This system optimizes space utilization to 95% while maintaining a material damage rate below 0.5%.
The robot can quickly switch materials (such as cartons, bags, and irregular parts) by changing fixtures (vacuum cups, mechanical grippers, etc.) and adjusting programs, and supports flexible switching of various stacking patterns such as field and plum blossom.

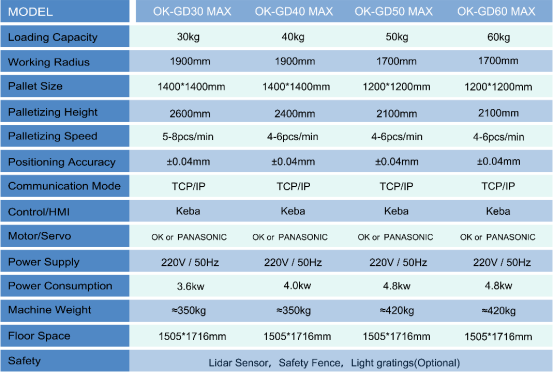

Key parameters and features of palletizing robot:
- Load Capacity and Operational Range:
The base palletizing robot supports 20-60kg payload
working radius of 1700mm-1900mm.
It accommodates pallet sizes including 1400*1400mm, 1200*1200mm, and other customized configurations.
- Palletizing Performance:
The system achieves a palletizing height of 2100mm-2600mm
Operates speeds: at 6-12 units per minute, maintaining stable performance. the speed decreases proportionally with heavier loads.
Positioning accuracy: ±0.004mm.
- System configuration:
Communication mode: TCP/IP, control system: Keba.
Motor/Actuator: OK or Panasonic.
- Structural design and safety:
Base area: 1050×1716mm, standardized spatial layout.
Weight: 350KG-420KG.
Safety features: LiDAR, safety railings, optional grating, multiple safety measures. Operation process of palletizing robot.
Packing robot gripper; flexible fixture and adjustable structure
Our palletizing robot is flexible and can match any product.
- Adjustable grippers and multiple array vacuum cups, with spacing adjustable via cylinder or motor drive, to accommodate various product size variations
- .Quick-change fixture design; standardized interface for quick fixture replacement within 5 minutes

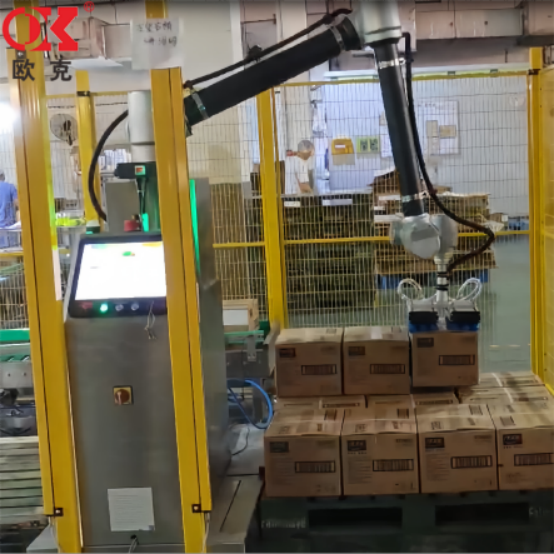

Carton suction cup case:

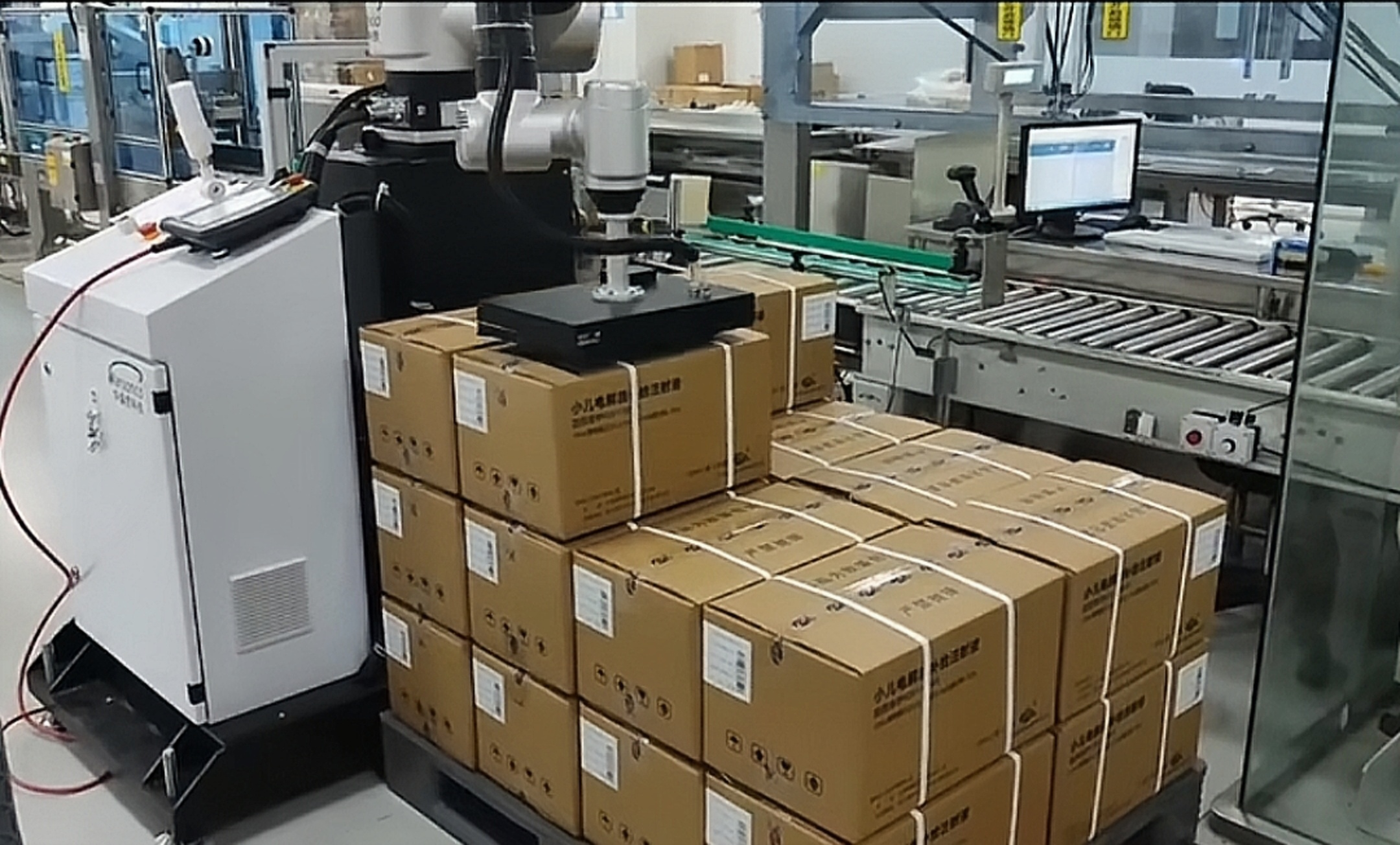

How to operate the palletizing robot
Basic operation: Call the preset program (select the pre-program for the corresponding material, which includes parameters such as grab path and pallet stacking plan) —–Confirm parameters (check pallet height, pallet specifications, stacking spacing, etc.) —–Start operation—–Emergency stop
With 3D vision and the “Auto Recognition” feature enabled, the robot can scan material locations in real time without manual positioning, making it suitable for scenarios with slight material displacement
When multiple robots operate in coordination, select “Collaborative Mode” in the control cabinet to set task allocation rules (e.g., division by production line rhythm) and ensure no collision interference.
Why choose OK collaborative palletizing robot
OK listed company China first-line brand
High-precision operation: Equipped with 3D visual recognition system and deep learning algorithm, the grasping accuracy in dynamic environment reaches ±0.04mm.
High flexibility adaptation: Intelligent switching of materials of multiple sizes is supported by motion control algorithm, which can scan object size in real time through vision and automatically plan the path, and can process two different products at the same time.
Longevity and stable performance: it can be used for 6-7 years, and imported brands can be used for 8 years.
High cost-effectiveness and quick return on investmentFull lifecycle service eliminates after-sales concerns
Customized solution design: provide free production line research and simulation test, and customize the solution according to the customer site and material characteristics.

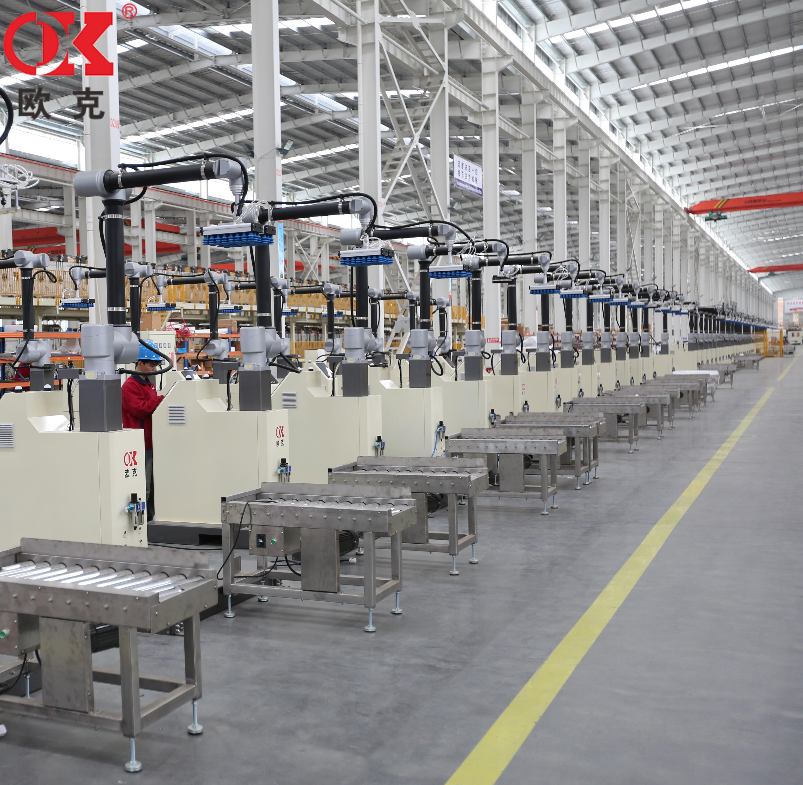

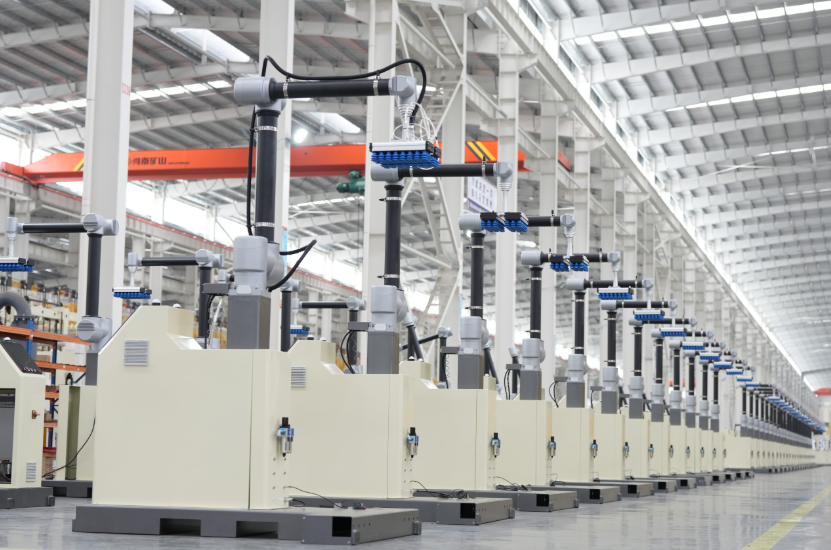

Fast delivery and training: 100,000 square meters of factory, the shortest delivery cycle of 7 days, “online + offline” operation training, ordinary employees can quickly master the basic programming in 2 hours.
Frequently Asked Questions (FAQ):
Q: How does the palletizing robot handle objects of different sizes?
A: The palletizing robot efficiently processes objects of varying sizes through a combination of “hardware flexibility and intelligent dynamic control”. The core logic follows the sequence: “first recognition, then adaptation, followed by execution”.
Q:What’s the price of a palletizing robot?
A: The payback period for using a palletizing robot is 6-12 months. OK Robotics is a direct manufacturer with no middlemen, offering competitive pricing.
Q:As for after-sales maintenance, what is the quality assurance？
A: The warranty period of palletizer is one year. After the warranty period, we will still provide remote guidance. After the warranty period, if the configuration is broken, we can sell it at cost.
