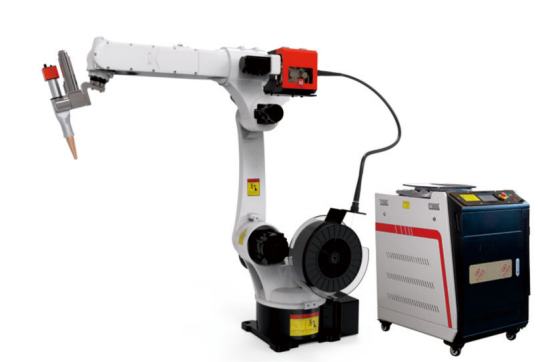

Robot laser welding machine
Robot laser welding machine delivers exceptional precision and flexibility for modern industrial welding. Featuring a six-axis robotic arm and high-power laser options, it performs complex, multi-track welds in any spatial orientation with minimal heat distortion. Ideal for demanding sectors like automotive, electronics, and medical device manufacturing, it ensures strong, clean seams, reduces material waste, and boosts productivity through user-friendly, automated operation.
Increased production
Full processing system
Excellent quality
Robot laser welding machine
More Information
Product Details
该机器人焊接机采用激光焊嘴熔接机械臂，实现多道焊接。操作简便快捷，能耗低，经济环保，方便实用，可自动完成整个焊接作业，提高产品质量，有效解决传统焊接耗时、耗材、不环保等问题。广泛应用于电子、汽车、医疗、五金、仪器仪表等行业。该机器人焊接系统擅长大面积、高空间焊接，突破了传统平面焊接的局限。它采用简单的计算机控制，实现高频、高精度焊接，最大限度地降低操作风险。焊接强度高，精度高，变形小，能够将多层机械零件熔合为一个整体。此外，该工艺还能确保焊缝稳定、尺寸小，大幅降低材料消耗。
Parameter table
| Robot Laser Welding Machine | ||||||
| Laser Part | ||||||
| Laser Output Power | 1000W | 1500W | 2000W | 3000W | 4000W | 6000 W |
| Wavelength Range | 1080 nm | |||||
| Power Adjustable Range | 10% – 100% | |||||
| Power Stability | < 3% | |||||
| Maximum Modulation Frequency | 20 KHz / 50 KHz (Customized) | |||||
| Working Voltage Frequency | 50 / 60 Hz | |||||
| Control Mode | TTL Level / GUI | |||||
| Connector Type | G8H | |||||
| Fiber Parameters | 50/100 µm | |||||
| Worktable Part | ||||||
| Multi-dimensional Table Stroke | Six-axis Robot | |||||
| Welding Depth | 0.1 mm – 5 mm (Stainless Steel Plate) | |||||
| Aiming and Positioning | CCD Monitoring System + Red Light Indicator | |||||
| Software System | Dedicated Software | |||||
| Focus Scope | 180 mm | |||||
| Physical Characteristics & Others | ||||||
| Host Power Consumption | 4.5 kW | |||||
| Cooling System | Integrated Thermostat Refrigerator | |||||
| Electricity Demand | Three-phase AC380V ±20V, 50/60 Hz, PE | |||||
| Installation Area | 2 m x 2.5 m | |||||
| Best Working Environment | Clean, dust-free, no vibration source, 13°C ~ 28°C, humidity 5% ~ 75% | |||||
| Consumables | Filter, Protective Lens | |||||
