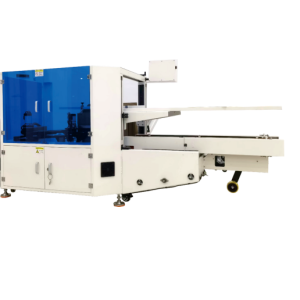

OK-8-500 Servo Case Opening Machine
Automatic carton opener is a specialized device that automatically opens stacked cardboard boxes, folds the bottom of the boxes according to a program, folds the bottom flaps, seals them with tape, and then conveys them to the carton packer. The machine is controlled by a PLC and a human-machine interface, and the bottom folding and sealing are completed automatically during transport without stopping. It simultaneously completes the entire process of box suction, forming, bottom folding, and sealing. It is easy to operate, simple to maintain, and has stable performance.
Increased production
Full processing system
Excellent quality
OK-8-500 Servo Case Opening Machine
More Information
Product Details
The automatic case erector OK-8-500 is an automated carton forming device that can automatically complete processes like carton unpacking, bottom folding and sealing. Controlled by PLC with a human-machine interface, it’s easy to operate and stable in performance. It can unpack 5~15 cartons per minute, apply cartons of L320-500mm, and is equipped with high-quality components such as Taibang motor and Siemens PLC. The machine measures about L2570*W2000*H1600mm and weighs 450kg.
Parameter table
| Name | Parameters |
| Machine Model | OK-8-500 |
| Carton Opening Speed | 5~15pcs/min |
| Carton Size | L240-500*W180-420*H150-500mm |
| Power Supply | 110/220V 50/60Hz 1 Phase |
| Power | 240W |
| Adhesive Tape Width | 480/60/75mm (Choose one to use) |
| Carton Storage Quantity | 80-100pcs(800-1000min) |
| Air Consumption | 450NL/min |
| Air Compressing | 6KG/cm³ |
| Table Height | 600+50mm |
| Machine Dimension | L2570*W2000*H1600mm |
| Machine Weight | 450KG |
Configuration plan
Motor: Taibang
Touchscreen: Kunlun Tongtai
Photoelectric switch: Omron
PLC: Siemens
Low-voltage electrical components: Schneider Electric
Pneumatic components: Airtac
