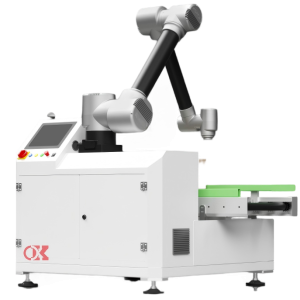

Collaborative Case Packer 5-Axis, 16 Cycles/Min High-Speed Automated Box Packing Machine

16 cycles/min high-speed collaborative case packer with wide application range, small footprint, reliable performance & easy operation. Ideal for flexible packaging systems in beverage, pharmaceutical, food industries.

Increased production

Full processing system

Excellent quality

Collaborative Case Packer 5-Axis, 16 Cycles/Min High-Speed Automated Box Packing Machine

More Information

Product Details

我们的五轴协同装箱机速度高达每分钟 16 个循环,显著缩短了包装周期,提高了生产效率。该设备结构紧凑,占地面积小,同时应用范围广泛,非常适合软包装系统。
该机器主要执行物料拣选和装箱作业:它从指定区域抓取物料,并高精度地将其放入纸箱中。该机器性能可靠,操作简便,降低了操作人员的学习难度。凭借其强大的适应性,该机器可广泛应用于饮料、医药、食品等行业的各种产品的自动装箱作业,满足不同行业多样化的包装需求。

Parameter table

Basic Characteristics Description Overall Power 5KW
Overall Weight Approx. 1000kg Equipment Noise ≤85 dB
Packing Beat 12-16 times/minute Equipment Footprint L 1500*W 1210mm
Robot Payload 20KG/25KG/30KG IP Rating IP54
Control System K8 Packing Docking Height 550mm
Pneumatic System AirTAC Air Consumption 500L/min
Air Source Requirement 0.6-0.8Mpa Applicable Product Dimensions L (280-500) mm
Communication Method EtherCAT W (150-400) mm
Material Main Frame: Carbon Steel with Baking Paint H (150-400) mm
Ambient Temperature -5-45 Applicable Product SIZE L50-480mm
Ambient Relative Humidity ≤75% (No Condensation) W50-380mm
Rated Voltage 220V H35-380mm



Configuration plan

Configuration Category
Details
Basic Configuration
  • 5-axis collaborative robot with payload options: 20KG/25KG/30KG
  • Control System: K8
  • Pneumatic System: AirTAC
  • Communication Method: EtherCAT
  • Main Frame Material: Carbon Steel with Baking Paint
  • IP Rating: IP54
Optional Supporting Mechanisms
  • Lane Divider
  • Chain Plate Line + Pushing Mechanism + Platform
  • Dual Servo AB Belt + Pushing Mechanism + Platform
Customizable End Effector
Tailored according to material characteristics (e.g., shape, weight, surface property) to ensure stable and efficient material gripping.

Factory Strength

Our factory is located in the headquarters base of Ouke Technology in Xiushui, Jiangxi Province, covering an area of ​​260 acres. It has 98,000 square meters of modern clean workshops and an annual production capacity of 1,000 sets of high-end household paper post-processing lines. The 5G+AI visual quality inspection in the workshop is connected with cloud equipment, achieving an industry-leading 99.7% yield rate and a 25% reduction in order delivery cycle. It is equipped with full-process processing equipment, including raw material cutting, bending, welding, heat treatment, forming, milling machines, planing machines, drilling, gantry cranes and other full processing systems. The hardware investment exceeds 500 million yuan.

Certificate of Honor

OKBOLONG is committed to providing comprehensive solutions such as palletizing robots, multifunctional film making, printing, bag making, intelligent logistics and automated packaging to global customers.
