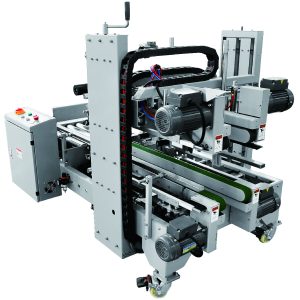

Automatic four-corner carton sealer OK-G755
The automatic four-corner carton sealer employs advanced L-shaped corner-pushing technology to efficiently synchronize the sealing of all four top and bottom edges of cartons, creating a robust “I-beam” structure. This highly automated machine features intelligent adjustment, stable driving systems, and seamless in-line compatibility with other packaging equipment.
Increased production
Full processing system
Excellent quality
Automatic four-corner carton sealer OK-G755
More Information
Product Details
It employs an L-shaped mechanism that seals the carton’s top and bottom edges simultaneously. This creates a robust “I-beam” pattern.
It teams with automatic flap folders and standard sealers to create a complete, unmanned I-beam sealing system.
It features top and bottom drive belts with automatic correction for fast and smooth sealing. Carton width and height are easily adjustable for quick changeover.
Parameter table
| Model | WJ-0755 |
| Conveyor Speed | 8 cartons/min |
| Carton Size | L320-700×W200-500×H180-300mm |
| Power Supply | 110/220V, 50/60Hz, 1 Phase |
| Power | 1000W |
| Adhesive Tape Width | 48/60/75 mm (Optional) |
| Air Consumption | 200NL/min |
| Compressed Air Pressure | 6 kg/cm² |
| Table Height | 600+50 mm |
| Machine Dimensions | L1900×W1300×H1520 mm |
| Machine Weight | 450 kg |
Configuration plan
